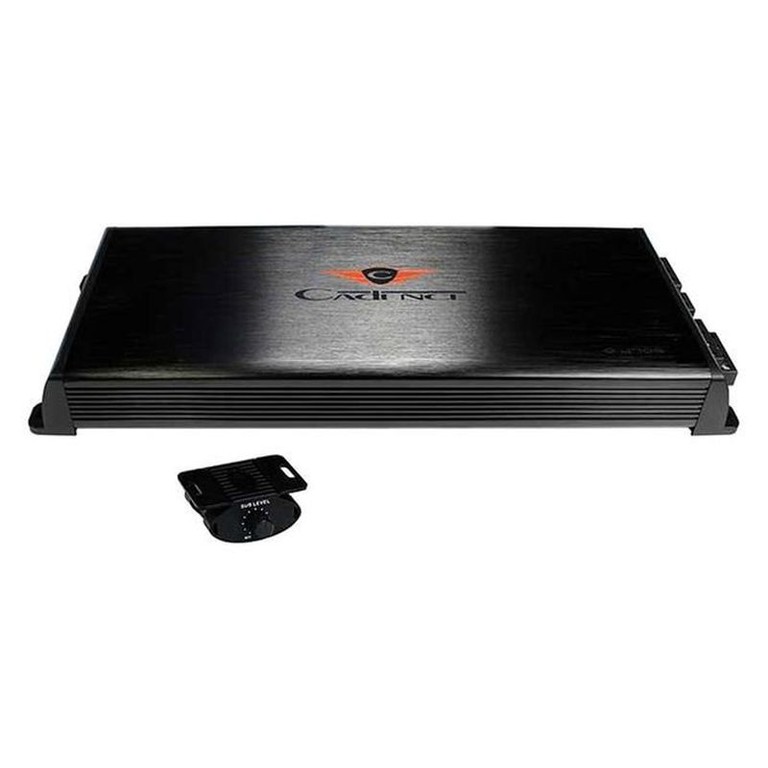

Cadence Q4705 5 Channel Amplifier Class A/B
Specifications
RMS Power@4 ohm-14.4V: 60W x4 + 150W x1
RMS Power@2ohm-14.4V: 60W x2 + 90W x2 + 230W x1
BridgeRMS Power@4 ohm-14.4V: 60W x2 + 180W x1
SubwooferChannel@2 ohm-14.4V: 230W
Max Power: 1175 Watt
Fuse Rating: 35A x2
Dimensions (Lx W x H): 15.75″X7.1″X2.05″
Unit Weight: 3.1 KG
Features
High Efficiency, High Speed MOSFET Power
Adjustable Bass Boost: 0-18dB
Adjustable Low Pass Crossover: 50Hz-500Hz
Adjustable High Pass Crossover: 50Hz-500Hz
Nickel Plated Connections, Acrylic Molded Terminals
4-Way Protection Circuitry(Thermal,Short,DC,Overload)
Extreme Convection Heat Dissipation via Computer Generated Heatsink Design
Heavy-Duty Aluminum Alloy Heatsink
Led Power and Protection Indicators
Studio Grade Bi-Polar Output Stage Transistors for Smooth Audio Response
Mute and Delay Soft Start System
Tri-Mode Operation Capability
5/4/3/2Chanel Capability
Nickel-Plated RCA Level Input
Standard with Custom Molded End Caps
