Specification

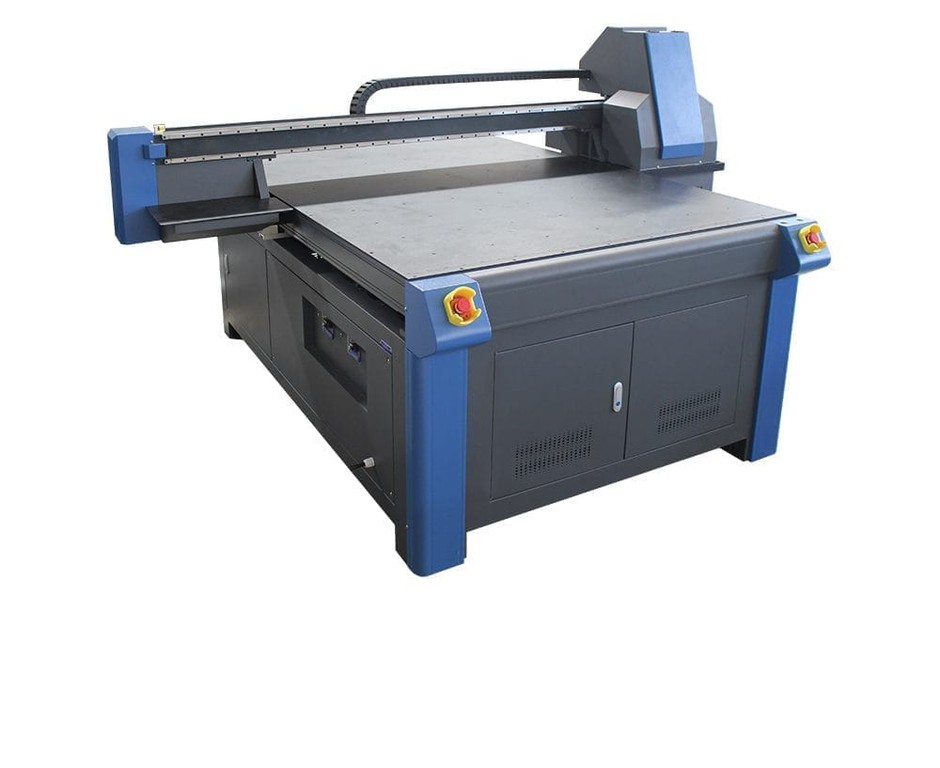

UV PRINTER 1313
Printhead
Piezoelectric Printhead DX5/7/8 G 3.5PL
Printhead Height
10 cm MAX
Media Size
1300 x 1300 (mm)
Media Types
Glass, Acrylic, Ceramic, Metal, Paper, Wood, Leather, PVC, PP, PE, PTFE…
Speed Nomal Quality
18 sqm/h
Speed Standard Quality
10 sqm/h
Speed Photo Quality
6 sqm/h
Ink Type
UV Ink
Ink Color
CMYK / CMYKLcLm / White or Varnish
Ink Capacity
500 ML per main tank of each color, Automatic ink quantity monitoring, non-stop with ink
Dry System
UV_LED light system
Resolution
1440, 2160, 2880 dpi
Rip Software
MainTop / PhotoPrint (Option)
PC Operation System
Windows 7 32/64bit RAM≥8G
Environment
Temperature: 18°C – 26°C ; Humidity : 40% – 60%
Power Supply
Max 3.6KW, AC, 50/60Hz, 220V(±10%)>12A
Image Format
TIFF, JPEG, EPS, PFD
Machine Size
L2600 W2000 H1500 (mm)
Packing Size
L2700 W2100 H1600 (mm)
Machine Weight
630 KG
Packing Weight
700 KG
