Σύνδεσμος αγγελίας: car.gr/338328676

ΔΟΡΥΦΟΡΙΚΟ ΠΕΔΙΟΜΕΤΡΟ SATFINDER

Καινούργιο

109 €

Κατηγορία

Δορυφορικοί Αποκωδικοποιητές

Κατάσταση

Καινούργιο

Κατασκευαστής

OEM

Χαρακτηριστικά

Τίτλος

ΔΟΡΥΦΟΡΙΚΟ ΠΕΔΙΟΜΕΤΡΟ SATFINDER

Κατάσταση

Καινούργιο

Τιμή

109 €

Κατηγορία

Δορυφορικοί Αποκωδικοποιητές

Εσωτερικός κωδικός καταστήματος

Car-16122

Εργοστασιακός κωδικός

SATLINK WS 6908

Κατασκευαστής

OEM

Απόθεμα

ναι

Διαθεσιμότητα

Άμεση παραλαβή / Παράδοση 1-3 ημέρες

1 / 3

Καινούργιο

ΔΟΡΥΦΟΡΙΚΟ ΠΕΔΙΟΜΕΤΡΟ SATFINDER

Καινούργιο

109 €

Κατασκευαστής

OEM

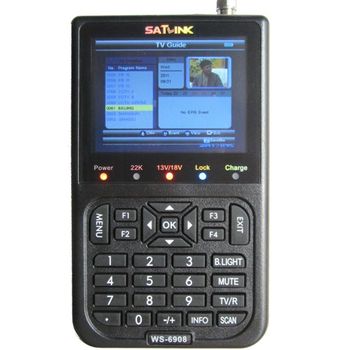

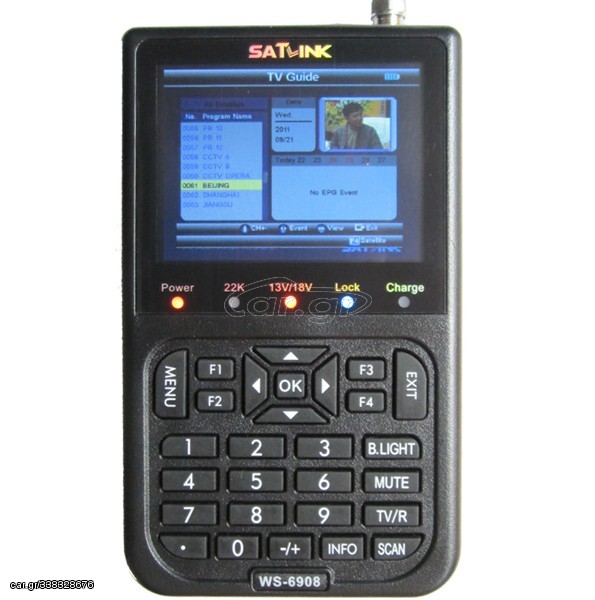

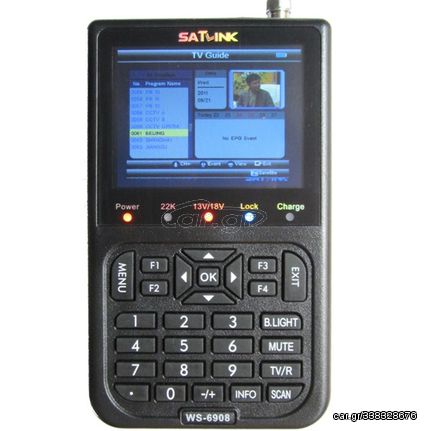

It is a battery powered hand held Satellite alignment meter demodulating DVB-S Signal. It's very convenient for installer to catch quick and accurate Alignment for Antenna to the best position. It's with microprocessor controller, reliable and stable performance. When it's turned on, channel picture, Signal Strength and Signal Quality will be showed on LCD Screen after you set up your local DVB-S Parameter. Also, it enables you to select big menu window for data figure which is helpful for alignment. It shows Azimuth and Elevation, CBER/VBER, S/N, Signal Strength and signal lock sound It detects very faint signal, and supports antenna power OFF/13V/18V selectable. It's with auto-protection for LNB short-circuit. It includes both AV IN and AV OUT for Camera, LCD...etc It's used with 12V Power Adaptor when you need to use external power. It includes high capacity Lithium Battery 8.4V3000mAh which works for more than 4 hours after it's fully charged. One year warranty for us Technical Parameter: System Capabilities Fully DVB-S Compliant Yes LNB input Connector F type, Female Frequency Range 950MHz-2150MHz Signal Level -65dBm~-25dBm LNB Powewr 13/18V,Max350mA LNB Switch Control 22KHz DiSEqC Ver 1.0/ 1.2 Demodulator Front end QPSK Demodulation Range 2Mbps~45Mbps SCPC and MCPC Capable Yes System Resources Processor 32bit processor (133MHz) FLASH 8Mbyte SDRAM 4*16Mbyte Video Decoder MPEG 2 MP@ML Data Rate Max15M bits/s Resolution 720*576,720*480 Video format PAL/NTSC/SECAM Audio MPEG MPEG-1&2 Type Single Sampling Rate 32,44.1 & 48KHz Data Transfer Connector USB Power Supply LI-ION battery 3000 mAH/8.4V Max Power Adaptor In AC 100-220 Out DC 12V Physical characteristics Size 9.5x15.5x4.5 (cm) Net Weight 0.5KG
