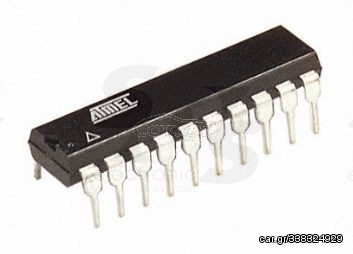

LOGIC IC PAL GAL ATF16V8

Καινούργιο

4 €

Κατηγορία

Ολοκληρωμένα - Ic

Κατάσταση

Καινούργιο

Κατασκευαστής

OEM

Χαρακτηριστικά

Τίτλος

LOGIC IC PAL GAL ATF16V8

Κατάσταση

Καινούργιο

Τιμή

4 €

Κατηγορία

Ολοκληρωμένα - Ic

Εσωτερικός κωδικός καταστήματος

Car-7404

Εργοστασιακός κωδικός

ATF16V8BQL-15

Κατασκευαστής

OEM

Απόθεμα

ναι

Διαθεσιμότητα

Άμεση παραλαβή / Παράδοση 1-3 ημέρες

1 / 1

Καινούργιο

LOGIC IC PAL GAL ATF16V8

Καινούργιο

4 €

Κατασκευαστής

OEM

IC PLD 15NS 20DIP CMOS (Electrically Erasable) Programmable Logic Device (PLD) which utilizes Atmel¢s proven electrically erasable Flash memory technology. Speeds down to 7.5 ns are offered. All speed ranges are specified over the full 5V ± 10% range for industrial temperature ranges, and 5V ± 5% for commercial temperature ranges. Several low power options allow selection of the best solution for various types of power-limited applications. Each of these options significantly reduces total system power and enhances system reliability. The ATF16V8Bs incorporate a superset of the generic architectures, which allows direct replacement of the 16R8 family and most 20-pin combinatorial PLDs. Eight outputs are each allocated eight product terms. Three different modes of operation, configured automatically with software, allow highly complex logic functions to be realized Applications: • Industry Standard Architecture – Emulates Many 20-Pin PALs® – Low Cost Easy-to-Use Software Tools • High-Speed Electrically Erasable Programmable Logic Devices – 7.5 ns Maximum Pin-to-Pin Delay • Several Power Saving Options • CMOS and TTL Compatible Inputs and Outputs – Input and I/O Pull-Up Resistors • Advanced Flash Technology – Reprogrammable – 100% Tested • High Reliability CMOS Process – 20 Year Data Retention – 100 Erase/Write Cycles – 2,000V ESD Protection – 200 mA Latchup Immunity • Commercial, and Industrial Temperature Ranges • Dual-in-Line and Surface Mount Packages in Standard Pinouts Specifications: Datasheets ATF16V8B,BQ,BQL Product Photos 20-DIP Standard Package 18 Category Integrated Circuits (ICs) Family Embedded - PLDs (Programmable Logic Device) Series 16V8 Packaging Tube Programmable Type EE PLD Number of Macrocells 8 Voltage - Input 5V Speed 15ns Mounting Type Through Hole Package / Case 20-DIP (0.300", 7.62mm) Supplier Device Package 20-PDIP Catalog Page 580 (CN081 PDF) Other Names ATF16V8BQL15PU
