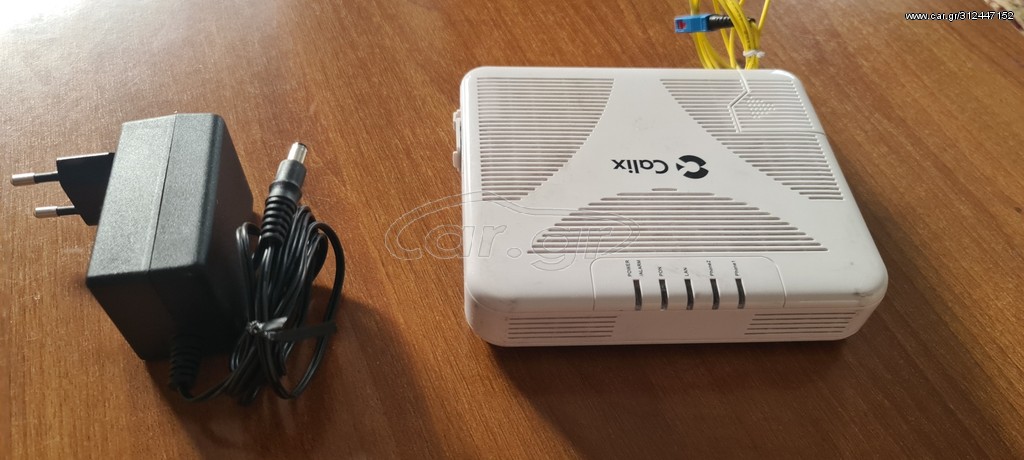

Fiber optics modem router σε αρίστη κατάσταση.
WIFI. Optical Network Terminal ONT with 2 phone ports 4 Ethernet LAN ports
Hi-speed IP Convergence at the Home
The T063G is designed for indoor installation and can be desktop or
wall-mounted. A single optical fiber carries upstream and downstream
traffic over the GPON between the OLT and the ONT. The T063G is fully
provisioned and managed from the OLT using PLOAM/OMCI.
VoIP Services
The T063G includes an integrated SIP or H.248 user client for carrierclass voice services.
IPTV Services
For IPTV services the T063G serves both PON multicast and unicast
Video-on-Demand (VoD). This capability removes the need to transport
multiple copies of the same content, greatly improving bandwidth efficiency.
The T063G optimizes multicast switching performance using IGMP
snooping standard. With the IGMP snooping standard, the T063G monitors the join and leave messages generated by the set-top box to selectively deliver multicast streams only to the involved ports.
Advanced Data Services
Data capabilities for the T063G include data transfer at wirespeed, autonegotiation and autosensing. The T063G built-in Ethernet switch features
VLAN manipulation, classification and filtering.
Quality of Service
The T063G supports VLAN QoS priority and DBA which provides a flexible use of the upstream bandwidth.
General Features
Compliance
– ITU-T G.984.1 - GPON General characteristics
– ITU-T G.984.2 - GPON Physical Media Dependent (PMD) layer specification
– ITU-T G.984.3 - GPON Transmission
convergence layer specification
– ITU-T G.984.4 - GPON: ONT Management and Control Interface (OMCI)
specification
– ITU-T G.984.5 - Enhancement band
for gigabit capable optical access
networks
– IEEE 802.1, 802.1D, 802.3i, 802.1p,
802.1q, 802.3u, 802.3ab
Layer 2 protocol
– Ethernet over GPON Encapsulation
Method (GEM)
– 8 T-CONTs
– 32 GEM Port ID
– Fully remote managed through
PLOAM/OMCI
– Supports FEC and AES encryption
Network Interface
– Class B+ GPON optical transceiver
– Diplexer fiber class B+
Throughput
– Line rate at 2488 Mbps downstream
and 1244 Mbps upstream
– 8 KHz framing downstream
– TDMA upstream
Transmitter (Upstream)
– DFB laser diode
– Wavelength: 1310 nm ± 20 nm
– Average optical transmit power: up to
+5 dBm
Receiver (Downstream)
– APD receiver
– Wavelength: 1490 nm ±10 nm
– Sensitivity: -28 dBm
Subscriber Interfaces
– Four 10/100/1000Base-T GigE ports
– RJ45 connectors
– Ethernet ports are autosensing and
autonegotiating
– Management and firmware upgrades
through OMCI
– VLAN QoS and T-CONT types 1-5
– 802.1D learning bridge, 4096 MAC
addresses
– 802.1p mapper with classifier,
eight priority levels
– 802.1Q tag-based VLANs
– QinQ or port based VLANs
– Ethernet jumbo frames (2k)
Optical Connector
– Female single-mode SC/APC connector
IPTV Support
– PON multicast
– 128 simultaneous multicast streams
– Unicast Video-on-Demand (VoD)
– IGMP snooping, v1, v2, v3
POTS Ports
– Two ports with RJ11 connectors
– Voice Signaling: VoIP using SIP or
H.248
– Call Features: Outgoing, Incoming call,
Call waiting, Call transfer, Three-party
conference, DTMF In/Out band
– Caller ID FSK, DTMF
– Voice CODECs: G.711 µ-law, A-law,
(optional G.723.1A, G.726, G729A)
– Modem voice band data over IP,
support up to v.34
– G168 echo cancellation
– Configurable dial plan
– T38 Fax relay
Physical Specifications
Dimensions
HxWxD: 43.8 x 238 x 173 mm
(HxWxD: 1.7 x 9.4 x 6.8 in)
Weight
645g (1.4 lb)
Mounting Options
Desktop or wall-mount
LED Indicators
– Power
– Alarm
– PON Link
– PON Act
– GigE 1-4
– VoIP 1-2
Power adaptor
– Input 100 - 240V, 50 - 60 Hz, 0.5A
– Output: 12 VDC/1A
Power consumption
Under 20W
UPS 8-Pin Connector, Signals:
– Battery missing
– On battery
– Battery low
– Replace battery
Environmental Specifications
Operating Temperature, Max
0°C to +45°C (32°F to 113°F)
Operating Humidity, Max
5 - 95% RH, noncondensing
