Σύνδεσμος αγγελίας:
car.gr/31041489

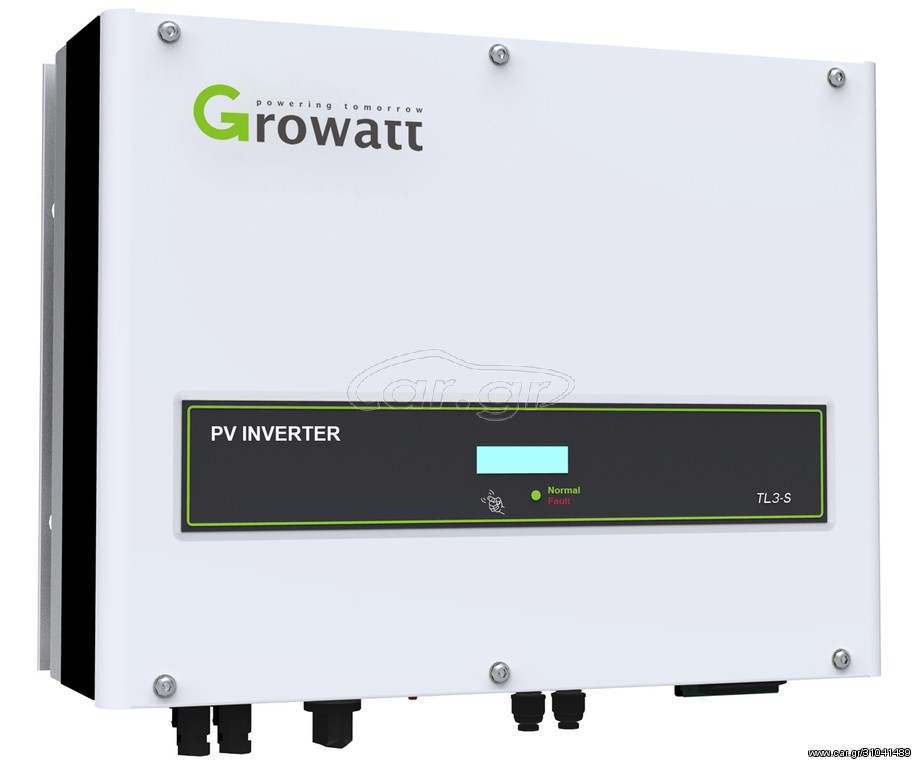

Growatt 10000TL3-S 600V
1.690 €
Χαρακτηριστικά
Τίτλος
Growatt 10000TL3-S 600V
Κατάσταση
Καινούργιο
Τιμή
1.690 €
Κατηγορία
Inverters
Εσωτερικός κωδικός καταστήματος
Car-www.oknow.gr
Κατασκευαστής
growatt 10kw 10000w - growattΟνομαστική Τάση Εισόδου
600 V
Ονομαστική Ισχύς
12000 W
Τύπος
Τριφασικό
Growatt 10000TL3-S 600V
1.690 €
Inverter Growatt 10000UE
καινουργιο με εγγυηση
τριφασικο
2 Μππτ
ΔΕΣΜΕΥΟΜΑΣΤΕ ΓΙΑ ΤΙΣ ΚΑΛΥΤΕΡΕΣ ΤΙΜΕΣ ΣΤΗΝ ΕΛΛΑΔΑ
Trífasico Solar inverter Growatt 10000TL3-S
Growatt 10000TL3-S Phase 2 MPPT
Thetrífasico solar inverter GROWATT 10000TL3-S with a maximum DC voltage up to 1,000 V with up to 98.4% efficiency and compact design.
TheGrowatt10000TL3-S isMULTI MPP with natural cooling controller, fan-free design. High power density, lighter and offers easy installation. With Growatt You will enjoy a flexible COMMUNICATION connection, support RF, Wi-Fi and Ethernet. 5 years warranty.
Growatt 10000TL3-S
Input data (DC)
Maximum recommended photovoltaic power (for STC module)
12000W
Voltage max. DC
1000v
Start voltage
160V
Photovoltaic voltage Range
160V-1000V
Nominal voltage
600v
Full-load MPP voltage range
450V-850V
Maximum input current
13A/13A
Number of MPP trackers per MPP tracking
2/1
Output data (AC)
Nominal AC output power
10kW
Apparent power of CA Max.
11kV
Output current Max.
16.7
Nominal AC Voltage
230V/400V, 184 ~ 275V
AC Network Frequency
50/60Hz
Power Factor
0.8 leader-0.8 delay
Thdi
< 3%
AC Network Connection Type
3/N/PE
Efficiency
Max. Efficiency
98.4%
Euro
98%
MPPT efficiency
99.5%
Protection
DC Reverse Polarity protection
Yes
DC switch for each MPPT
Yes
Output over current protection
Yes
AC output surge Protection-Varistor
Yes
Ground Fault Monitoring
Yes
Cricket monitoring
Yes
All-pole-sensitive leakage current monitoring Unit
Yes
General Information
Dimensions (W/H/D)
480/448/200 mm
Weight
21.6 kg
Operating Temperature range
-25 °c to + 60 ° C
Noise emission (typical)
≤ 35 dB (A)
Self-consumption (night)
< 0.5 W
Topology
Without transformer
Cooling concept
Natural
Environmental Protection Qualification
IP65
Altitude
3000m
Relative humidity
0 ~ 100%
Features
DC Connection
H4/MC4 (opt)
AC Connection
Screw Terminal
Display
Lcd
Interfaces: RS232/R485/WiFi/LAN/GPRS
Yes/yes/opt/opt/opt
Warranty: 5 years/10 years.
Yes / opt
Certificates and approvals
CE, IEC 62109-1/2, VDE 0126-1-1, Greece, VFR 2014, VDE-AR-N4105, G83, EN50438, CEI 0-21, AS4777, IEC 61727, IEC 62116
1.690 €
Αρ. αγγελίας:
Χαρακτηριστικά
Τίτλος
Growatt 10000TL3-S 600V
Τιμή
1.690 €
Κατάσταση
Καινούργιο
Κατηγορία
Εσωτερικός κωδικός καταστήματος
Car-www.oknow.gr
Κατασκευαστής
growatt 10kw 10000w - growatt
Ονομαστική Τάση Εισόδου
600 V
Ονομαστική Ισχύς
12000 W
Τύπος
Τριφασικό
Τελευταία αλλαγή
3 χρόνια πριν
Σύνδεσμος
Online Χρηματοδότηση
Περιγραφή
Inverter Growatt 10000UE
καινουργιο με εγγυηση
τριφασικο
2 Μππτ
ΔΕΣΜΕΥΟΜΑΣΤΕ ΓΙΑ ΤΙΣ ΚΑΛΥΤΕΡΕΣ ΤΙΜΕΣ ΣΤΗΝ ΕΛΛΑΔΑ
Trífasico Solar inverter Growatt 10000TL3-S
Growatt 10000TL3-S Phase 2 MPPT
Thetrífasico solar inverter GROWATT 10000TL3-S with a maximum DC voltage up to 1,000 V with up to 98.4% efficiency and compact design.
TheGrowatt10000TL3-S isMULTI MPP with natural cooling controller, fan-free design. High power density, lighter and offers easy installation. With Growatt You will enjoy a flexible COMMUNICATION connection, support RF, Wi-Fi and Ethernet. 5 years warranty.
Growatt 10000TL3-S
Input data (DC)
Maximum recommended photovoltaic power (for STC module)
12000W
Voltage max. DC
1000v
Start voltage
160V
Photovoltaic voltage Range
160V-1000V
Nominal voltage
600v
Full-load MPP voltage range
450V-850V
Maximum input current
13A/13A
Number of MPP trackers per MPP tracking
2/1
Output data (AC)
Nominal AC output power
10kW
Apparent power of CA Max.
11kV
Output current Max.
16.7
Nominal AC Voltage
230V/400V, 184 ~ 275V
AC Network Frequency
50/60Hz
Power Factor
0.8 leader-0.8 delay
Thdi
< 3%
AC Network Connection Type
3/N/PE
Efficiency
Max. Efficiency
98.4%
Euro
98%
MPPT efficiency
99.5%
Protection
DC Reverse Polarity protection
Yes
DC switch for each MPPT
Yes
Output over current protection
Yes
AC output surge Protection-Varistor
Yes
Ground Fault Monitoring
Yes
Cricket monitoring
Yes
All-pole-sensitive leakage current monitoring Unit
Yes
General Information
Dimensions (W/H/D)
480/448/200 mm
Weight
21.6 kg
Operating Temperature range
-25 °c to + 60 ° C
Noise emission (typical)
≤ 35 dB (A)
Self-consumption (night)
< 0.5 W
Topology
Without transformer
Cooling concept
Natural
Environmental Protection Qualification
IP65
Altitude
3000m
Relative humidity
0 ~ 100%
Features
DC Connection
H4/MC4 (opt)
AC Connection
Screw Terminal
Display
Lcd
Interfaces: RS232/R485/WiFi/LAN/GPRS
Yes/yes/opt/opt/opt
Warranty: 5 years/10 years.
Yes / opt
Certificates and approvals
CE, IEC 62109-1/2, VDE 0126-1-1, Greece, VFR 2014, VDE-AR-N4105, G83, EN50438, CEI 0-21, AS4777, IEC 61727, IEC 62116
