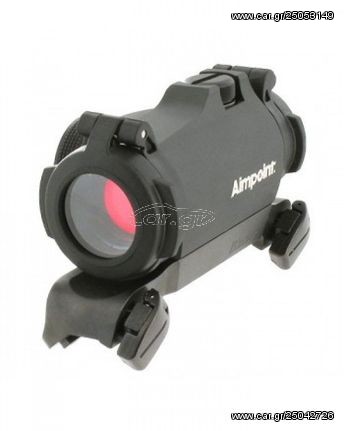

AIMPOINT® MICRO H-1 WITH MOUNT FOR BLASER RIFLES
This new mount utilizes both of the mounting points featured on Blaser rifle barrels. Quick detach levers allow this sight to be mounted and dismounted quickly, and without loss of zero.
This mount fits on all Blaser guns with the Blaser saddle mount interface.
The sight and mount are sold as a complete kit only.
AIMPOINT® MICRO H-1
The extremely compact Micro H-1 offers up to five years of constant on power from a single CR-2032 battery, and has 12 brightness settings for optimal performance in any light conditions. This sight is completely waterproof, and has been designed to stand up to any extremes in temperature, shock, and rough handing that you will encounter in the field.
OPTICAL SPECIFICATIONS
Operating principle: Reflex collimator sight with LED
Optical magnification: 1x
Aiming dot size: 2 MOA
Dot intensity: Visible against a background luminance of 0.1 to 55 000 lx
Dot color: Peak Wavelength: 650 ± 10 nm
NVD compatible:
Optical coating: Anti-reflex, all surfaces and multi-layer.
Clear aperture: 20 mm
Eye relief: Unlimited
POWER SOURCE
Battery type: 3V lithium battery, type CR2032.
Battery life – Day time use: 50 000h (over 5 years of continuous use)
Power intensity: 1 Off position and 12 daylight settings
PHYSICAL SPECIFICATIONS
Length sight only: 62 mm (2 7/16″)
Length conf: 88 mm (3 7/16″)
Width: 41 mm (1 9/16″)
Height sight only: 36 mm (1 3/8″)
Height conf: 41 mm (1 9/16″)
Weight sight only (incl battery): 84 g, (3,0 oz)
Weight conf: 227 g (8,0 oz) incl lens covers and mount
Housing material: High strength Aluminum
Housing finish and color: Semi-matte black
Material mount and spacer std conf: High strength Aluminum
Surface treatment: Anodized, semi matte
Height of optical axis – sight and mount: 18 mm (11/16″) over top surface of Picatinny/Weaver Rail
Height of optical axis – sight, mount and Micro spacer XX: Spacer low: 48 mm (1 7/8″) over top surface of Picatinny/Weaver Rail
Height of optical axis – sight, mount and Micro spacer ZZ: Spacer high: 57 mm (2 3/16″) over top surface of Picatinny/Weaver Rail
Adjustment: Range ±1 m at 100 meters (±1 yds at 100 yds) in windage and elevation, 1 click = 13 mm at 100 meters = 10 mm at 80 meters = 7/16″ at 100 yds
ENVIRONMENTAL SPECIFICATIONS
Temperature range operation: -30°C to 60°C (-20°F to 140°F)
Temperature range storage: -51°C to 71°C (-60°F to 160°F)
Temperature shock: Operable after a temperature shock between -45°C and +71°C. Duration: 4h of Hot +71°C, 4h of Cold -45°C. Cycling: 3 times
Humidity: Operates despite humidity. Limits: RH: 95%, Temp: 20ºC to 50 ºC, cyclic
Immersion, static: Submersible to 15 ft, 5 m
Shock: The unit is operable before and after shock. Limits: X-axis: 500 g, 0.7 – 1.1 ms (3 shocks), Y-axis: 40g ±4g, 11 ±1ms (2 shocks in each direction, Z-axis: 40g ±4g, 11 ±1ms, 2 shocks in each direction. Functional during exposure (room temperature)
Vibration: The unit operates despite vibration. Limits: Vibration, sinusoidal in a frequency range of 10-150 Hz. Frequency: 10-30 Hz, ±1.587 mm, Frequency: 30-150 Hz. 5.75 g, 1 octave/min
Chemical resistance: Withstands occasional contamination of: Hydraulic oil (FSD 8407, Tryckolja 021), Lubricating oil (FSD 8127, Motorolja 5W/30), Lubricating oil (FSD 8220, Smörjfett 220), Lubricating oil (Break Free), Fuels (FSD 8612, Diesel fuel oil), Solvents/cleaning (FSD)
