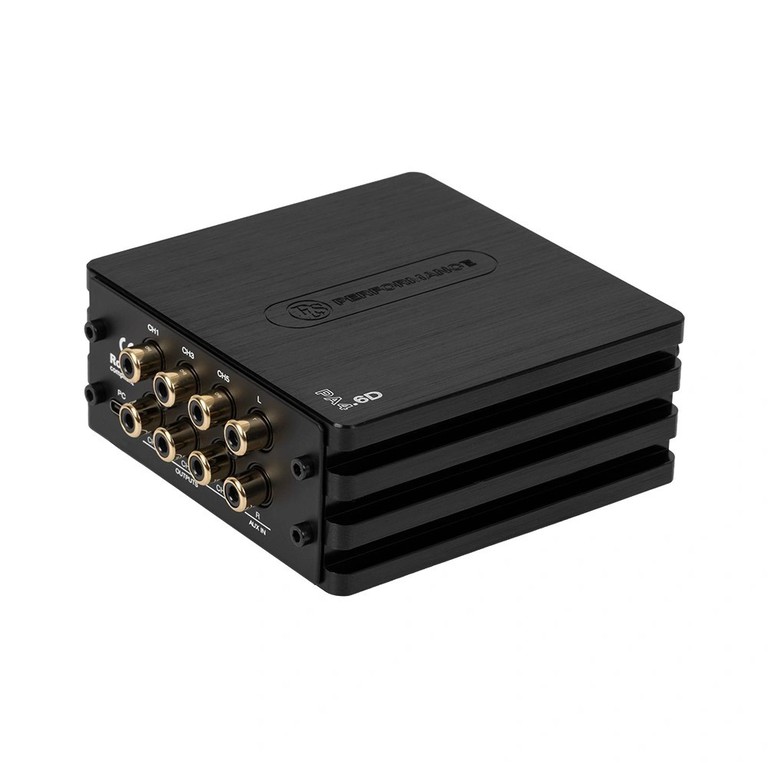

DLS PA46D 6-channel DSP with Bluetooth
179,10 €
Χαρακτηριστικά
Τίτλος
DLS PA46D 6-channel DSP with Bluetooth
Κατάσταση
Καινούργιο
Τιμή
179,10 €
Κατηγορία
Ανταλλακτικά Αυτοκινήτων - Equalizer
Ανταλλακτικά Αυτοκινήτων - Ηχοσύστημα Κομπλέ
Εσωτερικός κωδικός καταστήματος
Car-529723
Εργοστασιακός κωδικός
PA4.6D
Κωδικός aftermarket
7394409046565
Κατασκευαστής ανταλακτικού
Dls
DLS PA46D 6-channel DSP with Bluetooth
179,10 €
The DLS Performance Advantage PA4.6D is a great-sounding 6-channel DSP for those who want full control over their sound and the freedom to choose their own power amp. The focus is on precision, stable integration and a sound that feels cohesive and natural in everyday life. The PA4.6D acts as the system's hub between the car stereo and external power amps and is built to correct both speakers and the car's acoustics without changing the basic character of the music. The result is a calmer, more balanced sound that is easy to live with over time.
6-channel DSP
Cirrus Logic DSP, 24 bit / 192 kHz
High-level input with Smart Load
31-band EQ per channel
Crossover filter up to 48 dB per octave
Time compensation up to 519 cm
Optical input, RCA and Bluetooth 5.1
10 presets, USB configuration
When you want to really control the sound
PA4.6D is built for systems where you want to improve the sound in the car or where external power amplifiers are an obvious part of the sound build. It gives the opportunity to adjust the sound exactly to your own wishes and is particularly suitable for systems that can be expanded over time. The DSP works consistently and predictably, which makes the adjustments easy to understand and the result easy to fine-tune.
DSP that shapes the whole, not the character
At the heart of the system is the Cirrus Logic DSP with 24-bit, 192 kHz resolution. Each channel can be adjusted with a 31-band EQ, either graphic or parametric, providing high precision without losing musicality. Crossover filters up to 48 dB per octave make it possible to create clean transitions between treble, midrange and bass, even in more advanced system solutions.
The time compensation, adjustable in very small steps, allows the sound image to be positioned correctly at the driver's seat. When everything falls into place, the sound is perceived as more concentrated, with better focus and clearer space.
Stable integration into modern cars
The PA4.6D is designed to work seamlessly with modern car systems. The high-level inputs with Smart Load present the correct load to original head units that monitor impedance, reducing the risk of error codes and unstable operation. Automatic power on and off allows the system to behave like the original, but with significantly better control over the sound.
An open system that can grow
With four inputs and six RCA outputs, there is plenty of flexibility for thoughtful sound builds. The PA4.6D works just as well in a finished system as in one that is to be developed step by step. Bluetooth 5.1 and optical input allow you to work with pure digital signals, while the USB connection to a PC provides full access to settings and storage of up to ten presets.
Specifications
Type: 6-channel digital signal processor
DSP: Cirrus Logic 24 bit, 192 kHz
Memory slots: 10
Auto turn on: Yes
PC connection: USB 2.0, Windows XP to Windows 11
High-level in: 4 channels, Smart Load Circuitry
Low-level in: 2 channels RCA
Digital: Optical and Bluetooth 5.1
DSP output: 6 channels RCA
Output voltage: 2.5 V RMS
Frequency range: 20 to 20,000 Hz
Signal to noise (A-weighted): > 100 dB
Filter types: Bessel, Butterworth, Linkwitz Riley
Filter curves: 6 to 48 dB per octave
EQ: 31 bands GEQ or PEQ per channel, –18 to +12 dB in 0.1 dB steps
Time compensation: 0 to 15 ms, 0.021 ms steps, up to 519 cm
179,10 €
Αρ. αγγελίας:
Χαρακτηριστικά
Τίτλος
DLS PA46D 6-channel DSP with Bluetooth
Τιμή
179,10 €
Κατάσταση
Καινούργιο
Εσωτερικός κωδικός καταστήματος
Car-529723
Εργοστασιακός κωδικός
PA4.6D
Κωδικός aftermarket
7394409046565
Κατασκευαστής ανταλακτικού
Dls
Τελευταία αλλαγή
2 μήνες πριν
Σύνδεσμος
Περιγραφή
The DLS Performance Advantage PA4.6D is a great-sounding 6-channel DSP for those who want full control over their sound and the freedom to choose their own power amp. The focus is on precision, stable integration and a sound that feels cohesive and natural in everyday life. The PA4.6D acts as the system's hub between the car stereo and external power amps and is built to correct both speakers and the car's acoustics without changing the basic character of the music. The result is a calmer, more balanced sound that is easy to live with over time.
6-channel DSP
Cirrus Logic DSP, 24 bit / 192 kHz
High-level input with Smart Load
31-band EQ per channel
Crossover filter up to 48 dB per octave
Time compensation up to 519 cm
Optical input, RCA and Bluetooth 5.1
10 presets, USB configuration
When you want to really control the sound
PA4.6D is built for systems where you want to improve the sound in the car or where external power amplifiers are an obvious part of the sound build. It gives the opportunity to adjust the sound exactly to your own wishes and is particularly suitable for systems that can be expanded over time. The DSP works consistently and predictably, which makes the adjustments easy to understand and the result easy to fine-tune.
DSP that shapes the whole, not the character
At the heart of the system is the Cirrus Logic DSP with 24-bit, 192 kHz resolution. Each channel can be adjusted with a 31-band EQ, either graphic or parametric, providing high precision without losing musicality. Crossover filters up to 48 dB per octave make it possible to create clean transitions between treble, midrange and bass, even in more advanced system solutions.
The time compensation, adjustable in very small steps, allows the sound image to be positioned correctly at the driver's seat. When everything falls into place, the sound is perceived as more concentrated, with better focus and clearer space.
Stable integration into modern cars
The PA4.6D is designed to work seamlessly with modern car systems. The high-level inputs with Smart Load present the correct load to original head units that monitor impedance, reducing the risk of error codes and unstable operation. Automatic power on and off allows the system to behave like the original, but with significantly better control over the sound.
An open system that can grow
With four inputs and six RCA outputs, there is plenty of flexibility for thoughtful sound builds. The PA4.6D works just as well in a finished system as in one that is to be developed step by step. Bluetooth 5.1 and optical input allow you to work with pure digital signals, while the USB connection to a PC provides full access to settings and storage of up to ten presets.
Specifications
Type: 6-channel digital signal processor
DSP: Cirrus Logic 24 bit, 192 kHz
Memory slots: 10
Auto turn on: Yes
PC connection: USB 2.0, Windows XP to Windows 11
High-level in: 4 channels, Smart Load Circuitry
Low-level in: 2 channels RCA
Digital: Optical and Bluetooth 5.1
DSP output: 6 channels RCA
Output voltage: 2.5 V RMS
Frequency range: 20 to 20,000 Hz
Signal to noise (A-weighted): > 100 dB
Filter types: Bessel, Butterworth, Linkwitz Riley
Filter curves: 6 to 48 dB per octave
EQ: 31 bands GEQ or PEQ per channel, –18 to +12 dB in 0.1 dB steps
Time compensation: 0 to 15 ms, 0.021 ms steps, up to 519 cm
