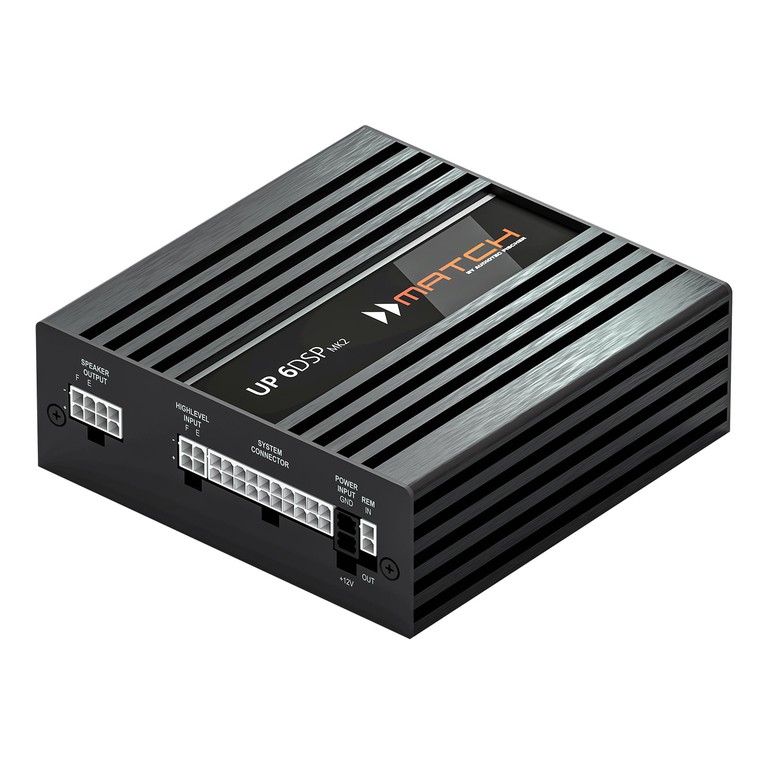

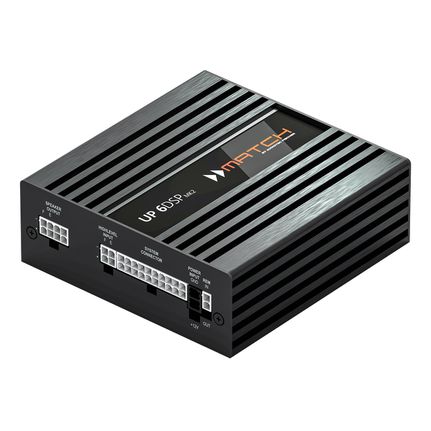

MATCH UP 6DSP MK2 | Pancarshop
649 €
Compact powerhouse with smart integration and modern DSP technology
The MATCH UP 6DSP MK2 combines a powerful 6-channel Class GD amplifier with an integrated 7-channel DSP, delivering power and dynamics for authentic hi-fi sound while maintaining clean, OEM-friendly integration in the vehicle. In the MK2 generation, the concept has been further refined and adds key updates with a USB-C port and the Extension Card 2.0 slot for contemporary, expandable system integration.
Perfect upgrade for standard factory sound systems
For optimal integration into existing factory systems, the UP 6DSP MK2 provides six highlevel inputs to tap the OEM speaker signals (including ADEP.3 for reliable interfacing with many factory head units), plus an optical digital input for integrating digital sources.
On the output side, it offers six amplifier channels, complemented by a preamp output and the integrated 7-channel DSP for flexible speaker configurations and precise sound tuning. In terms of power, the amplifier delivers 4 x 65 Watts RMS @ 4 Ω as well as two powerful subwoofer outputs with up to 2 x 90 / 160 Watts RMS @ 4 / 2 Ω maximum output power – ideal for a powerful front stage and confident subwoofer drive.
This combines performance and connectivity in a compact, space-saving design and adds further expandability in the MK2 generation: the new Extension Card 2.0 slot is included, a revised expansion system with a screw-secured plastic cover and cross-series compatibility. This allows modular expansion of the system integration when required, for example with Bluetooth® HD or additional analog or digital inputs. The USB-C port also enables modern access via DSP PC-Tool.
ACO – Advanced 32 Bit CoProcessor platform
Of course, the UP 6DSP MK2 is equipped with our proprietary 32 Bit ACO platform, which doesn’t just take over all control tasks ultra-fast, but also handles a bunch of audio functions: fantastic sound effects such as Augmented Bass Processing or RealCenter are implemented as well as a channel-separated Input EQ including Advanced Input Signal Analyzer (AISA) for easy analysis and compensation of input signals of OE radios, which already include a sound setup by default.
DSP PC-Tool 6 feat. TuneEQ – Powerful features for the ultimate sound experience
Of course, the MATCH UP 6DSP MK2 can be easily configured via our professional and exceptionally intuitive DSP PC-Tool 6. The familiar, numerous setting options leave nothing to be desired and guarantee an extremely precise sound adjustment even for complex system configurations. And thanks to the new, proprietary TuneEQ 2.0 as well as TuneToTarget functions for automated frequency response correction, you also save a lot of time when optimizing your sound.
Virtual Channel Processing – this is how signal routing works today
The optimal adaptation to existing multi-channel sound systems requires sensible management and configuration of the many DSP channels. Especially when front, rear and center systems are split into multi-way systems, conventional routing concepts quickly reach their limits, both in terms of implementation and usability. The multi-stage "Virtual Channel Processing", in conjunction with the recognized user-friendly DSP PC-Tool software makes it easy to map even highly complex system configurations and to freely assign our proprietary FX sound features.
Features
6-channel amplifier with ultra efficient Class GD concept, which combines outstanding sound quality with maximum efficiency
7 DSP channels for maximum flexibility when upgrading standard sound systems with up to 6 channels
Optional cable harnesses for easy integration into existing factory sound systems
EV-Ready – extended input voltage range up to 18 V for stable operation even in electric vehicles with increased on-board voltages
Smart 6-channel highlevel input with ADEP.3 circuit for seamless OEM integration
VCP (Virtual Channel Processing) offers outstanding flexibility in configuring complex sound systems, thanks to:
Cross-channel group equalizers that affect several output channels simultaneously
Multi-way speaker configuration of DSP sound effects (SFX)
Additional features such as Rear Attenuation
1:1 IOR (Input-to-Output Routing) – individual assignment of all highlevel inputs to any amplifier output for direct input-to-output routing
ACO – Advanced 32 Bit CoProcessor platform for system and DSP features like:
AISA (Advanced Input Signal Analyzer) and InputEQ fo easy analysis and correction of input signals
DLC (Dynamic Loudness Control) and (Remote Tone Control) for volume-dependent dynamic adjustment of highs and lows
Proprietary TuneEQ function for automated adjustment of the input, virtual and output equalizers
SFX Sound Effects – Augmented Bass Processing, RealCenter & Co.
Stabilized Output Power technology (SOP Max) for consistently stable output power – delivering full performance at all times, regardless of input voltage
Extension Card 2.0 slot for system add-ons like Bluetooth® HD audio streaming, extra analog inputs, or future signal sources
Optical input in SPDIF format with sampling rate between 12 and 96 kHz
Mono RCA output for connecting external amplifiers, e.g. subwoofer amplifiers such as the MATCH UP 1FX
Compact, future-proof SCP (Smart Control Port) for connecting remote controls and accessories
Intelligent power management ensures perfect voltage stability across all modern vehicle platforms
Start-Stop capable power supply down to 6 Volts supply voltage
Auto Remote switch for amplifier activation without the need for an external remote signal
Compact design with low heat dissipation thanks to extraordinary efficiency
Maximum control with DSP PC-Tool 6 – professional software for precise amplifier configuration and accurate sound tuning in the vehicle
Special features:
Class GD technology
Audiotec Fischer´s
