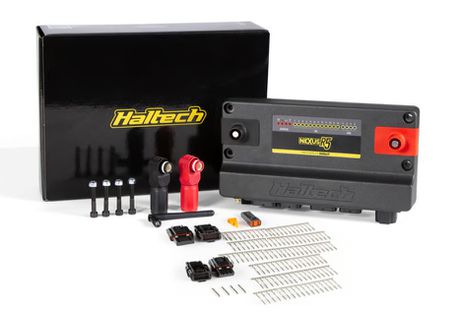

Nexus R5 + Plug and pin Set
4.090,56 €
Χαρακτηριστικά
Τίτλος
Nexus R5 + Plug and pin Set
Κατάσταση
Καινούργιο
Τιμή
4.090,56 €
Κατηγορία
Ανταλλακτικά Αυτοκινήτων - Εγκέφαλος + Κίτ
Εσωτερικός κωδικός καταστήματος
Car-56036
Εργοστασιακός κωδικός
HT-195100
Κατασκευαστής ανταλακτικού
HALTECH - HT-195100 Nexus R5 + Plug and pin Set
4.090,56 €
Nexus R5 is Haltech's flagship product combining the functionality of a power distribution module, a data logger, a dual channel wideband controller and a state-of-the art engine management system in one powerful device we call a VCU (Vehicle Control Unit).4 x 25A (continuous) push-pull PWM capable (5 kHz) outputs (for power to injectors / coils, transbrake, thermofan, fuel pump).12 x 8A (continuous) high side outputs (low speed PWM, 200 Hz) outputs (power to sensors, NOS solenoids, etc).18 x peak/hold injector drivers (can be used as low side drive outputs).12 x low current ignition outputs (can be used as low side drive outputs).8 x low side drive outputs, PWM capable (DPOs).4 x push-pull / h-bridge outputs (8A, PWM capable), eg for electronic throttle.23 x 0-5V analog inputs with redunancy for electronic throttle and switchable 5V pullup.Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters.10 x synchronous pulsed inputs, zero crossing or adjustable thresholds - cam sensor inputs, frequency inputs or 0-5V analog inputs.2 x onboard wideband controllers, supporting NTK and LSU4.9.3 x CAN ports with switchable termination.Plug and Pin Set - Suits Nexus R5.For use in converting an existing loom to suit NEXUS R5 applications.Suits: Racing application where advanced race features, data logging and power management control is required.Includes: NEXUS R5 VCU, SurLok connectors (Red and Black), Wi-Fi antenna, mounting bolts, USB-C Cable, USB-C dust cap. Plug and pin set: AMP 26 pin key 1 and 3, 34 pin key 1 and 2, DTP-4
4.090,56 €
Αρ. αγγελίας:
Χαρακτηριστικά
Τίτλος
Nexus R5 + Plug and pin Set
Τιμή
4.090,56 €
Κατάσταση
Καινούργιο
Εσωτερικός κωδικός καταστήματος
Car-56036
Εργοστασιακός κωδικός
HT-195100
Κατασκευαστής ανταλακτικού
HALTECH - HT-195100
Τελευταία αλλαγή
1 χρόνο πριν
Σύνδεσμος
Online Χρηματοδότηση
Περιγραφή
Nexus R5 is Haltech's flagship product combining the functionality of a power distribution module, a data logger, a dual channel wideband controller and a state-of-the art engine management system in one powerful device we call a VCU (Vehicle Control Unit).4 x 25A (continuous) push-pull PWM capable (5 kHz) outputs (for power to injectors / coils, transbrake, thermofan, fuel pump).12 x 8A (continuous) high side outputs (low speed PWM, 200 Hz) outputs (power to sensors, NOS solenoids, etc).18 x peak/hold injector drivers (can be used as low side drive outputs).12 x low current ignition outputs (can be used as low side drive outputs).8 x low side drive outputs, PWM capable (DPOs).4 x push-pull / h-bridge outputs (8A, PWM capable), eg for electronic throttle.23 x 0-5V analog inputs with redunancy for electronic throttle and switchable 5V pullup.Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters.10 x synchronous pulsed inputs, zero crossing or adjustable thresholds - cam sensor inputs, frequency inputs or 0-5V analog inputs.2 x onboard wideband controllers, supporting NTK and LSU4.9.3 x CAN ports with switchable termination.Plug and Pin Set - Suits Nexus R5.For use in converting an existing loom to suit NEXUS R5 applications.Suits: Racing application where advanced race features, data logging and power management control is required.Includes: NEXUS R5 VCU, SurLok connectors (Red and Black), Wi-Fi antenna, mounting bolts, USB-C Cable, USB-C dust cap. Plug and pin set: AMP 26 pin key 1 and 3, 34 pin key 1 and 2, DTP-4
