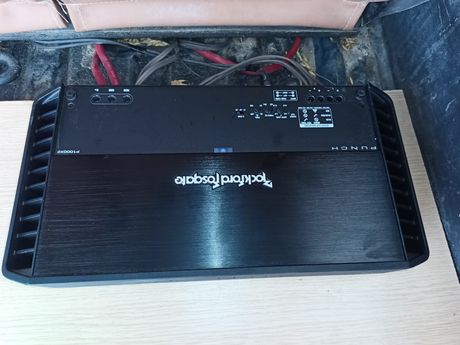

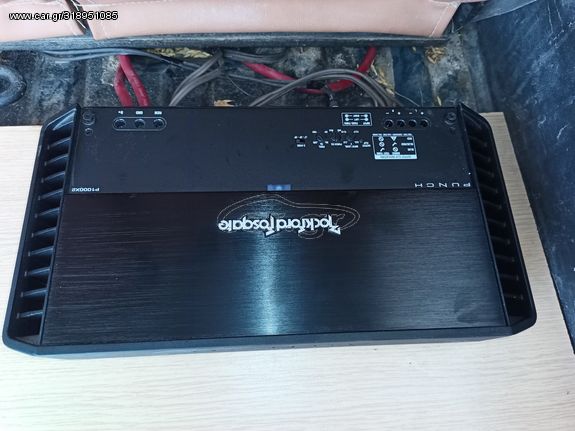

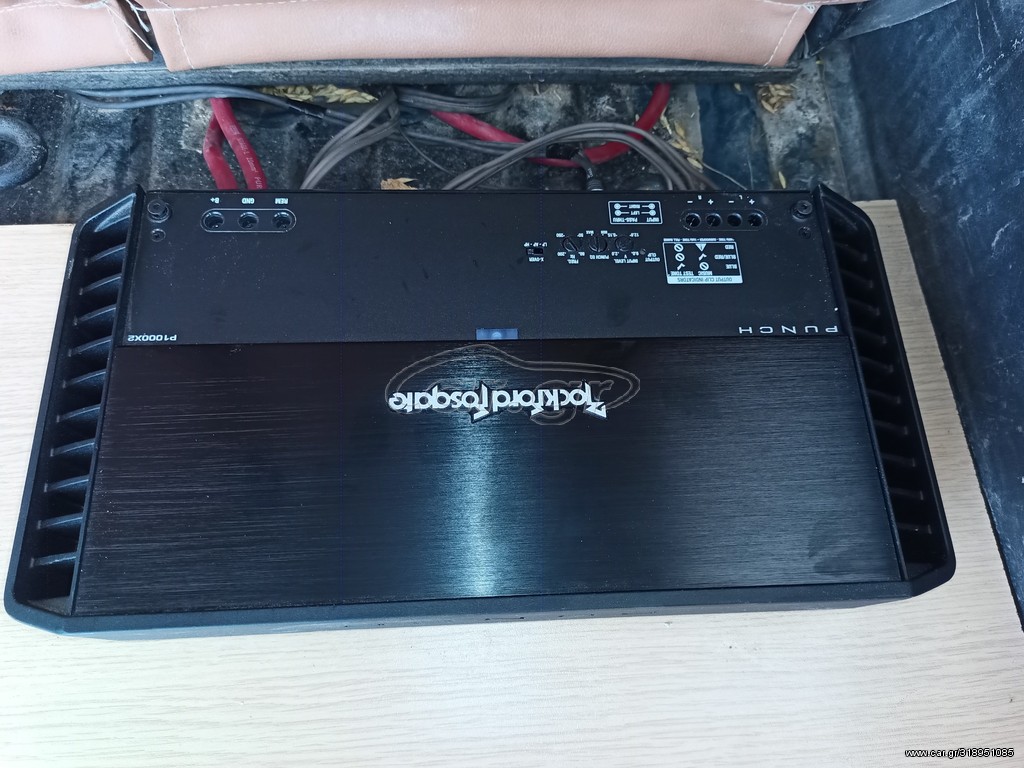

Επαιζε 6 Beyma και 4 κορνες στα 2ohm.Δεν εχει ουτε μια γρατζουνια και το CD με τις ρυθμισεις του δεν εχει ανοιχτει ακομα,δίνω και την κούτα μαζί.Τα rms του ειναι μετρημενα απο την CEA και ειναι αληθινα.Πολύ δυνατός ενισχυτής,τόσο για φωνές,όσο και για μπάσο.Τιμή καινούριου 885€.
Rated Power
(RMS Continuous Power)300 Watts x 2 4-Ohm
500 Watts x 2 2-Ohm
1000 Watts x 1 4-Ohm Bridged
Cta-2006 Compliant
Number of Channels 2
Rated Power
(RMS Continuous Power)300 Watts x 2 4-Ohm
500 Watts x 2 2-Ohm
1000 Watts x 1 4-Ohm Bridged
Dynamic Power
(PVC/PowerCube®)401 Watts x 2 4-Ohms 0° Res
656 Watts x 2 2-Ohms 0° Res
BridgeableYes
Frequency Response20Hz to 20kHz +/- 1.0dB
Input Sensitivity150 mV - 12 V
Circuit Topology ClassClass A/B
Efficiency (average)69% 4-Ohm
64% 2-Ohm
Total Harmonic Distortion (THD+Noise)4-Ohm: <1.0%
2-Ohm: <1.0%
Signal InputHi/Low level: 1 RCA pair
Signal OutputLow level: 1 RCA pair
Tone ControlsPunch EQ2 Bass: 0dB to +18dB 45Hz and/or
Punch EQ2 Treble: 0dB to +12dB 12.5kHz
Function depends upon LP/AP/HP switch position
Crossover ControlsHigh-Pass/Low-Pass (HP/LP): 50Hz-250Hz 12dB/octave Butterworth
Remote ControlsOptional Punch Level Control (PLC2) Ready
Visual IndicatorsPower/Protect/Thermal LED
Input Clip LED3
Output Clip LED1,2,3
LED Color Legend:
1BLUE: <0.5% THD
2VIOLET: 1% THD
3RED: 10%+ THD
Power Wire Gauge4 AWG
Power Input ConnectorCaptive C-Clamp
Speaker Wire Gauge8 AWG to 18 AWG
Speaker Output ConnectorCaptive C-Clamp
CoolingConvection
Heatsink
Operating Voltage9 - 16 VDC
Recommended Fuse
(not included)140 A
Average Current Draw (13.8V Music)70 A
Max. Current Draw (13.8V Sinewave)140 A
Suggested Alternator100 A
Included In The Box
Dimensions (H x W x D)2.38 x 7.76 x 15.03 (in)
6.05 x 19.71 x 38.18 (cm)
Shipping Weight15 Lbs. (6.80 Kg.)
