Features
- High power subwoofers
- Klippel® optimized
- Reinforced paper cone
- 3” copper voice coil
- Push terminals
Technical data
*Describes the subwoofer's ability for each kind of use.
☺ = Good ability
☺☺☺☺☺☺ = Excellent ability

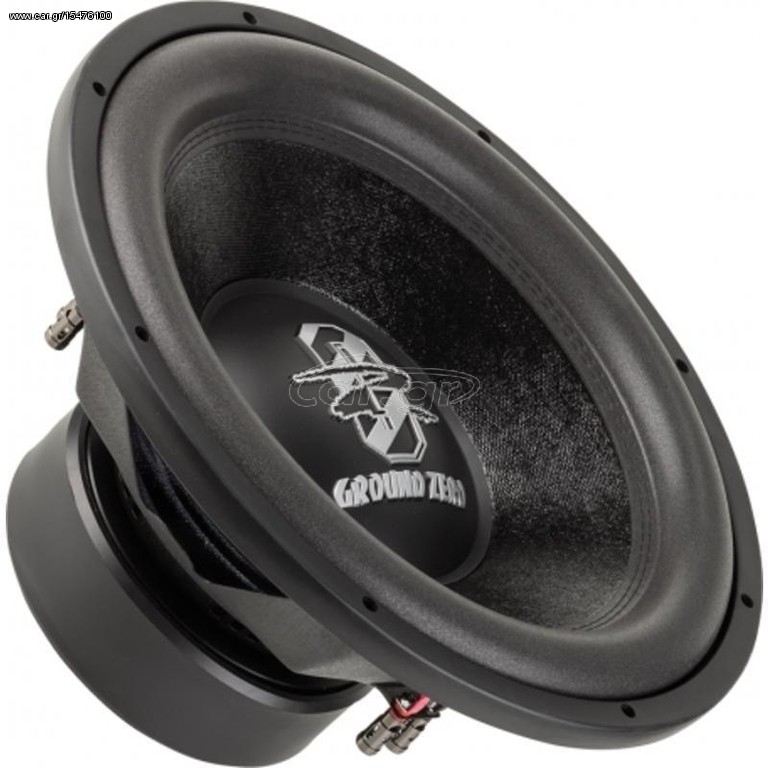

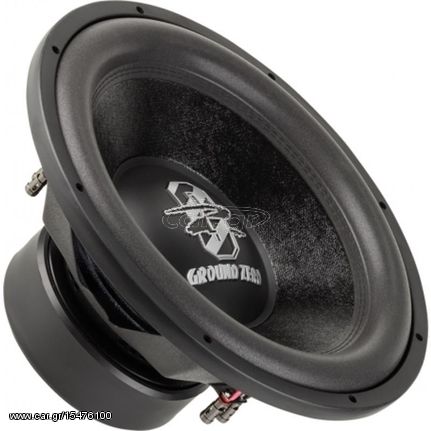

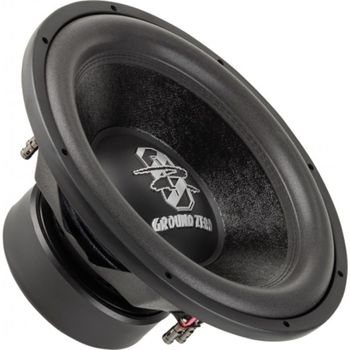

ModelGZRW 15D2
Diameter380 mm / 15"
Mounting diameter353 / 13.90"
Mounting depth184 / 7.24"
Voice coil75 mm Kupfer / 3" Copper
ConeVerstärkte Papiermembrane / Reinforced paper cone
Power Handling1000 WRMS
Impedance2 x 2 Ohm
SPL88 dB
Xmax25 mm / 1"
Fs23.58 Hz
Qts0.44
Vas163.08 L / 5.76 cu.ft.
Sound Quality*☺☺
SPL Competition*☺☺☺
Low bass performance 20 - 50 Hz*☺☺☺☺
Mid bass performance 50 - 80 Hz*☺☺☺
Box recommendation vented100 Liter netto / 3.53 cu.ft. net - Rohr/Tube 2 x 10 cm / 2 x 6” - L = 28 cm / 11.02”
Box recommendation sealed
50 – 100 Liter netto / 1.77 – 3.53 cu.ft. ne
