Features
- Reinforced paper cone
- 63 mm / 2.5" Copper voice coil
- High-Roll sandwich surround
- Push terminals
Technical data
*Describes the subwoofer's ability for each kind of use.
☺ = Good ability
☺☺☺☺☺☺ = Excellent ability

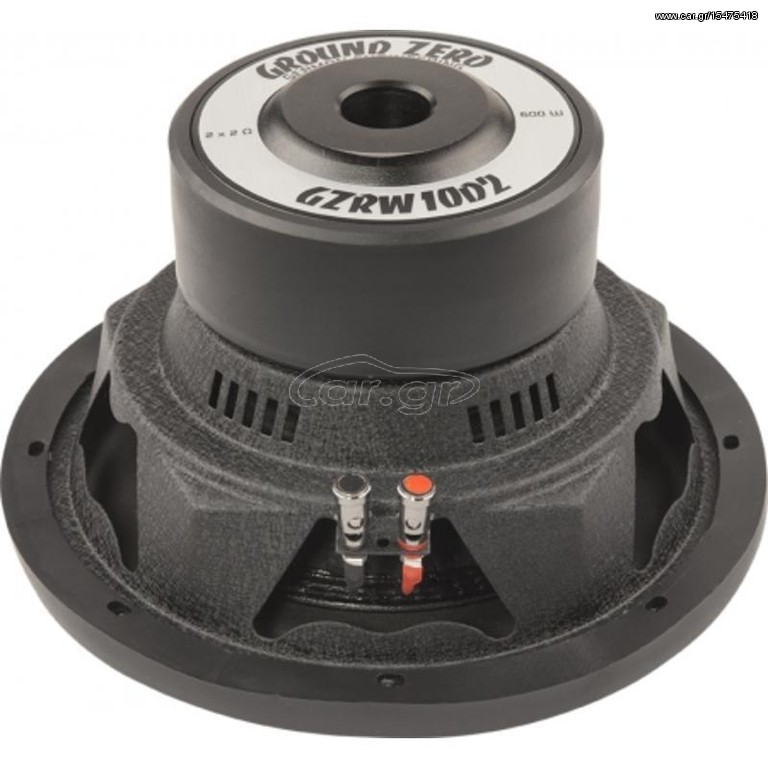

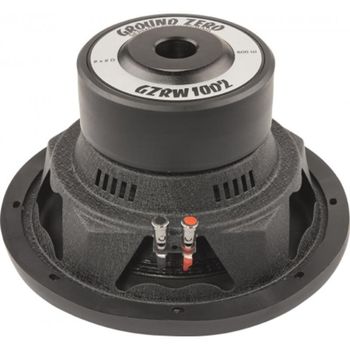

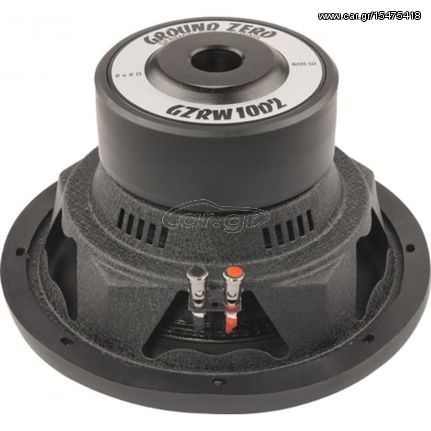

ModelGZRW 10D2
Diameter250 mm / 10"
Mounting diameter233 mm / 9.17"
Mounting depth148 mm / 5.83"
Voice coil63 mm Kupfer / 2.5" Copper
ConeVerstärkte Papiermembrane / Reinforced paper cone
Power Handling600 WRMS
Impedance2 x 2 Ohm
SPL86 dB
Xmax35 mm / 1.38"
Fs34 Hz
Qts0.61
Vas23,2 / 0.819
Sound Quality*☺☺
SPL Competition*☺☺☺
Low bass performance 20 - 50 Hz*☺☺☺
Mid bass performance 50 - 80 Hz*☺☺
Box recommendation vented40 Liter / 1.57 cu.ft. net - Rohr/Tube 10 cm / 4" - L = 24 cm / 9.5"
Box recommendation sealed
10 - 20 Liter / 0.43 - 0.78 cu.ft. net
