Features
- High x-max subwoofer for perfect lowbass performance
- Stiff aluminium cone & rubber surround
- Alu cast basket with large spider for high excursion
- Many excellent test results from several magazines
Technical data
*Describes the subwoofer's ability for each kind of use.
☺ = Good ability
☺☺☺☺☺☺ = Excellent ability

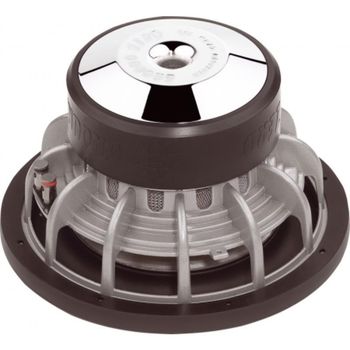

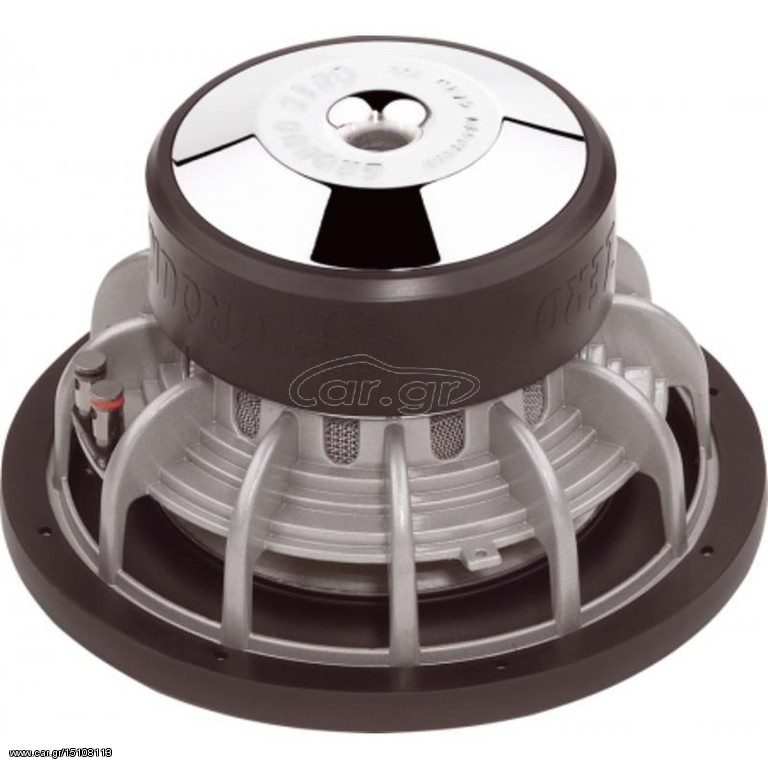

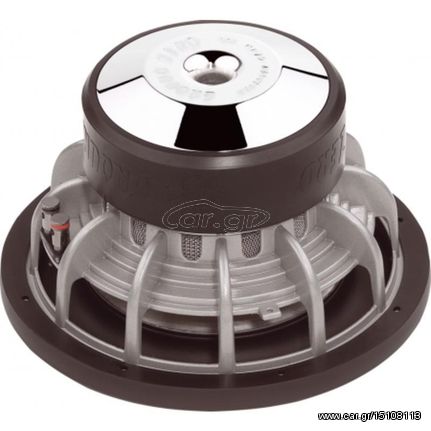

ModelGZHW 25X
Diameter250 mm / 10"
Mounting diameter241 mm / 9.49"
Mounting depth149 mm / 5.91"
Voice coil50 mm Runddraht / 2" Round wire
ConeAluminium
Power Handling600 WRMS
Impedance2 x 2 Ohm
SPL84 dB
Xmax20 mm / 0.8"
Fs27.1 Hz
Qts0.37
Vas27 L / 0.95 cu.ft.
Sound Quality*☺☺☺
SPL Competition*☺☺
Low bass performance 20 - 50 Hz*☺☺☺
Mid bass performance 50 - 80 Hz*☺☺☺
Box recommendation vented33 Liter / 1.17 cu.ft. - Rohr / Tube 1 x Ø 8 cm / 3.15" - L = 16 cm / 6.3"
Box recommendation sealed
10 - 15 L / 0.35 - 0.53 cu.ft
