- High efficient class D mini amplifier - Extreme compact size - 2 Ohm stable stereo (MINI TWO / FOUR) - 1 Ohm stable mono / 2 Ohm linkable (MINI ONE) - High-level input with Auto-On - 12 dB adjustable bass boost (@45 Hz) (MINI ONE) - Adjustable wide-range filters - Adjustable input sensitivity - Bass remote control (MINI ONE & MINI TWO) - Thermal / short circuit / overload protection
- High efficient class D mini amplifier
- Extreme compact size
- 2 Ohm stable stereo (MINI TWO / FOUR)
- 1 Ohm stable mono / 2 Ohm linkable (MINI ONE)
- High-level input with Auto-On
- 12 dB adjustable bass boost (@45 Hz) (MINI ONE)
- Adjustable wide-range filters
- Adjustable input sensitivity
- Bass remote control (MINI ONE & MINI TWO)
- Thermal / short circuit / overload protection
Technical data
*The WRMS output power is based on the CEA Standard CEA-2006-A ( 14.4V, 1% THD)

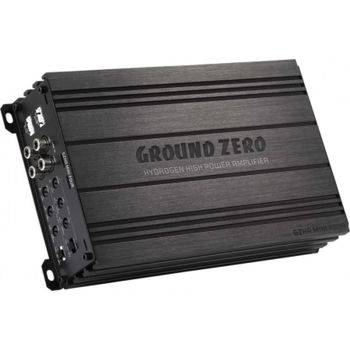

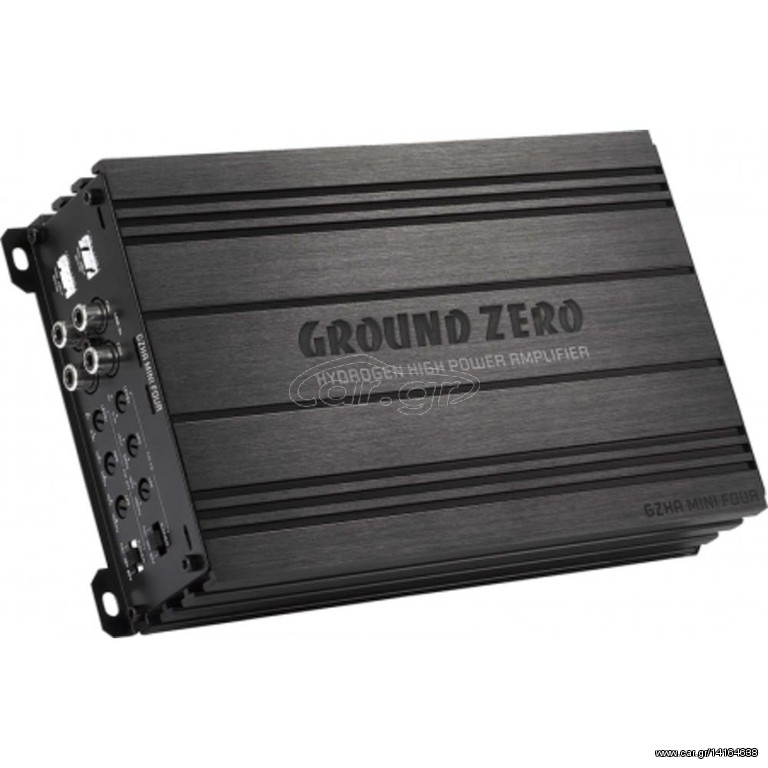

ModelGZHA MINI FOUR
Type4 Ch Class D
Output Power @ 4 Ohm (CEA*)4 x 80 W
Output Power @ 2 Ohm (CEA*)4 x 130 W
Output Power @ 1 Ohm (CEA*)-
Bridge mode @ 4 Ohm (CEA* / 10% THD)2 x 320 W
Bridge mode @ 2 Ohm (CEA* / 10% THD)-
Output power linkmode 2 Ohm-
24 Volt Unit-
18 Volt stable-
Lowpass40 - 4000 Hz
Highpass10 - 500 Hz
Bandpass10 - 4000 Hz
Subsonic-
Bassboost-
Phaseshift-
Adjustable Q-factor-
Variable Bias Setting-
Bass remote-
High Level inJa / Yes
Line Out-
Illumination-
Dimensions cm / Inch13,5 x 5,2 x 21 cm / 5.32" x 2.05" x 8.27"
