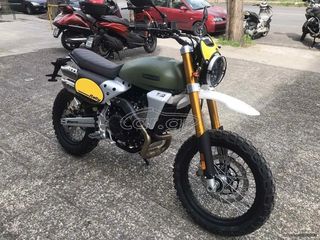

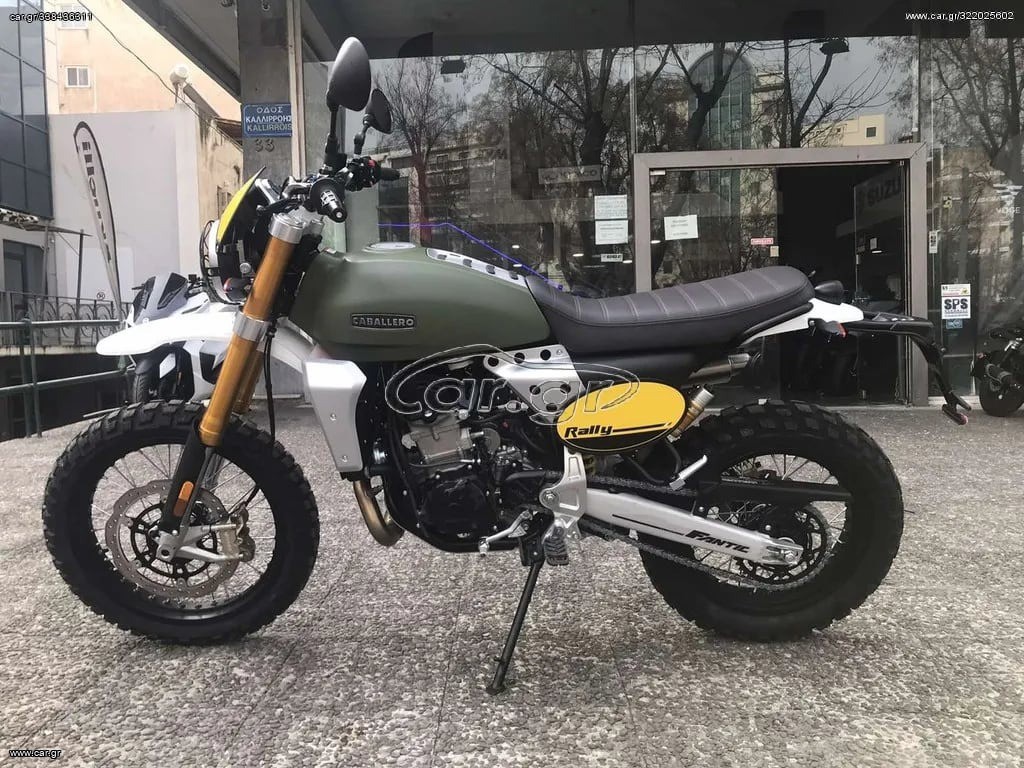

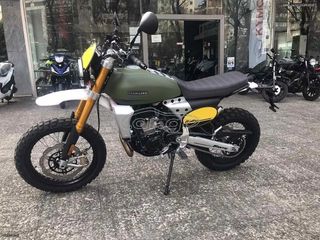

The Caballero 500 Rally is dedicated to those who love the details, but with an adventurous soul. The off-road chassis make it the ideal companion for your exciting trips, with 43 mm adjustable suspension and increased travel which reaches 200 mm front and rear, high front fender, aluminium swingarm and handlebars with crossbar.
Your dreams will be made of open paths in front of you. The Rally is the most off-road version of Caballero, designed to make you dream on two wheels of adventures in faraway lands.
Technical Data
ENGINE
Homologation: Euro5
Engine: Single cylinder 4 stroke, liquid cooled
Displacement: 449 cc
Max Power detected*: 29,5 kW @ 7100 rpm
Max Torque detected*: 43 Nm @ 6000 rpm
Bore: 94.5 mm
Stroke: 64 mm
Distribution: Single camshaft - 4 valve
Fuel system: Electronic Fuel - throttle body ø 40mm
Starter: Electric
Gears: 6
Clutch: Multi plate wet clutch
Exhaust system: Dual exhaust by ARROW
CHASSIS
Fuel consumption: 4,2 l/100 km
CO2 emission: 97 g/km
Frame: CrMo steel central-tube frame
Swingarm: In aluminum with variable section and progressive link
Tires: 110/80 R19, 140/80 R17
Wheels: Spoked with aluminum rims
Brakes: Front floating brake disc ø320 mm – Rear brake disc ø230 mm
ABS: Continental two-channel ABS (disengageable)
Front suspension: ø43mm upside down with hydraulic regulation
Front suspension travel: 200 mm
Rear suspension: with hydraulic regulation
Rear suspension travel: 200 mm
OVERALL DIMENSIONS
Seat height: 860 mm
Wheelbase: 1435 mm
Length: 2080 mm
Dry weight: 150 kg
Fuel Tank: 12 l
